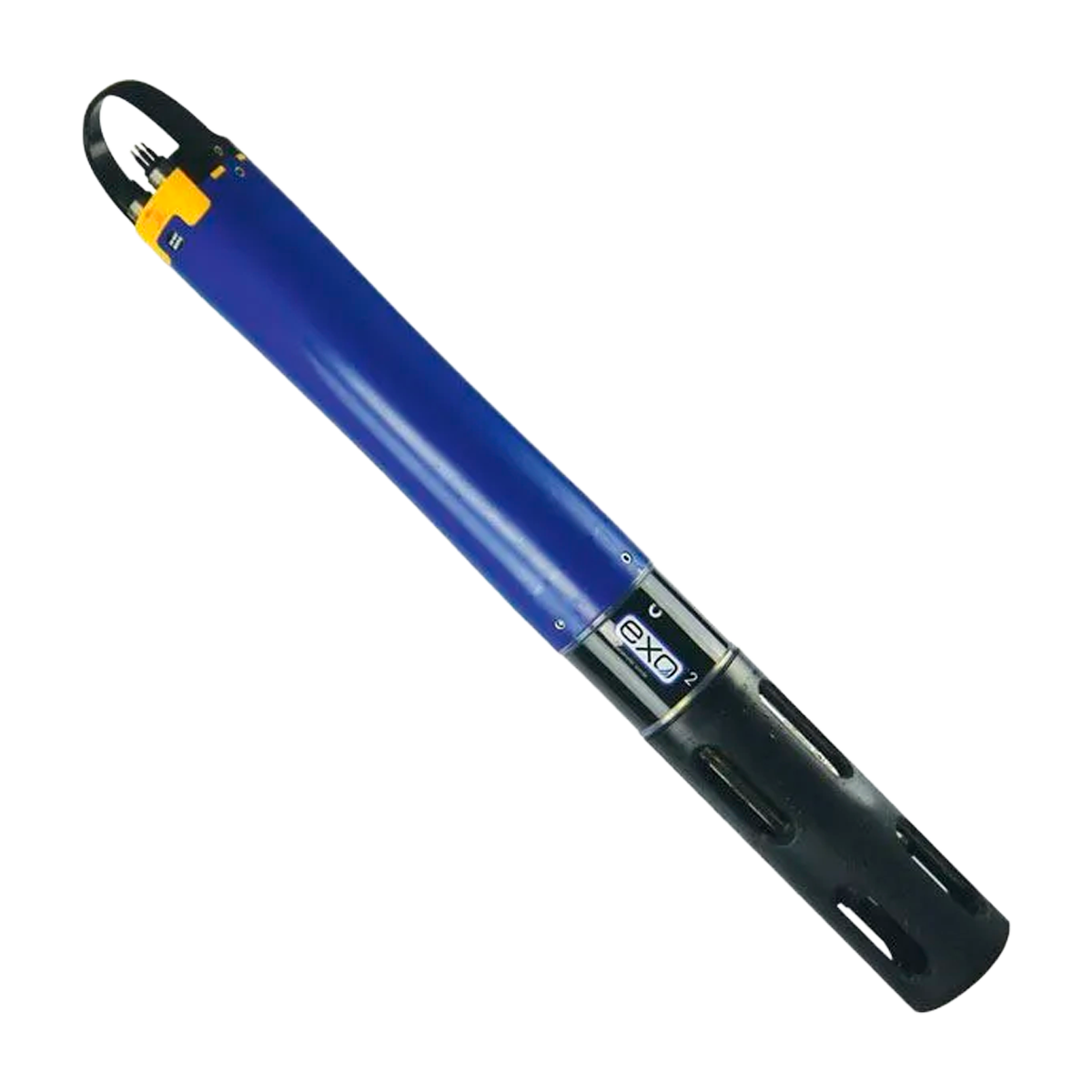

Sonda Multiparamétrica YSI EXO2 ²⁶

EXO2 Multiparameter Sonde for Advanced Water Quality Monitoring

The most versatile platform on the market with multiple depth and sensor configurations to adapt to any environmental challenge.

The EXO2 multiparameter sonde is an extremely robust and adaptable water quality monitoring solution, designed to deliver data of unmatched precision in long-term deployments. This platform stands out for its technical flexibility, offering various versions including options without a depth sensor or with integrated sensors for ranges of 10, 100, and 250 meters. Its architecture allows for the integration of up to seven smart sensors, making it the ultimate tool for researchers looking to document the health of rivers, estuaries, and oceans with total reliability and minimal intervention.

Key Features

• Available in multiple depth variants to optimize precision based on the study environment.
• High-durability titanium architecture rigorously tested in extreme ecosystems.
• Seven universal ports allowing for rapid sensor exchange without the need for external recalibration.
• High-power central anti-fouling wiper that ensures data purity for months.
• "Wet-mate" neoprene connectors and impact-resistant housing for total underwater protection.
• Autonomous operational capacity exceeding 90 days thanks to its smart power management.

• Specifications
• In the Box
• Documents

• Base Model	EXO2 Sonde (SKU 599502)
  Variant: No Depth	7 sensor ports; no integral depth sensor
  Variant: 10 Meter Depth	7 sensor ports; range 0 to 10 m (±0.04% FS)
  Variant: 100 Meter Depth	7 sensor ports; range 0 to 100 m (±0.04% FS)
  Variant: 250 Meter Depth	7 sensor ports; range 0 to 250 m (±0.04% FS)
  Sensor Ports	7 ports (6 available when using the central wiper)
  Construction Materials	Xenoy®, Lexan®, Titanium, and 316 Stainless Steel
  Memory Capacity	512 MB; >1,000,000 logged readings
  Power Supply	4 D-cell alkaline batteries (Internal) or 9-16 V DC (External)
  Battery Life	90 days (typical with 15 min interval at 20°C)
  Communications	Bluetooth, RS-485, RS-232, SDI-12, USB, and Modbus
  Operating Temperature	-5 to 50 °C (23 to 122 °F)
  Storage Temperature	-20 to 80 °C (-4 to 176 °F)
  Sample Rate	Up to 4 Hz (0.25 seconds)
  Conductivity	0 to 200 mS/cm; ±0.5% of reading or 0.001 mS/cm
  Temperature (C/T Sensor)	-5 to 50 °C; ±0.2 °C
  Dissolved Oxygen (Optical)	0 to 500%; ±1% of reading or 1% saturation (0-200%)
  pH	0 to 14 units; ±0.1 units within ±10 °C of calibration
  Turbidity	0 to 4000 FNU; 0.3 FNU or ±2% of reading (0-999 FNU)
  fDOM	0 to 300 ppb QSU; Linearity r² > 0.999
  Total Algae	Chlorophyll (0-400 µg/L), PC (0-100 µg/L), PE (0-280 µg/L)
  Nitrates (NitraLED UV)	0 to 30 mg/L-N; ±0.1 mg/L-N or 5% of reading (0-10 mg/L-N)
  Dimensions	Diameter: 7.62 cm (3.00 in); Length: 70.52 cm (27.76 in)
  Weight	3.60 kg (7.94 lbs)
  Warranty	Sonde: 3 years; Optical and C/T sensors: 2 years

• • 1x EXO2 Sonde with 7 sensor ports and battery compartment
  • 1x Sensor guard
  • 1x Calibration and storage cup
  • 4x Sensor port plugs
  • 2x Connectors
  • 4x D-cell batteries
  • 3x Spare O-rings
  • 1x EXO Tool Kit (sensor tool, battery cap tool, syringe, lubricant)
  • 1x Kor Software (USB Drive)
  • 1x Quick Start Guide
• • YSI EXO2 Datasheet (English)
  • EXO2 Sonde User Manual (English)
