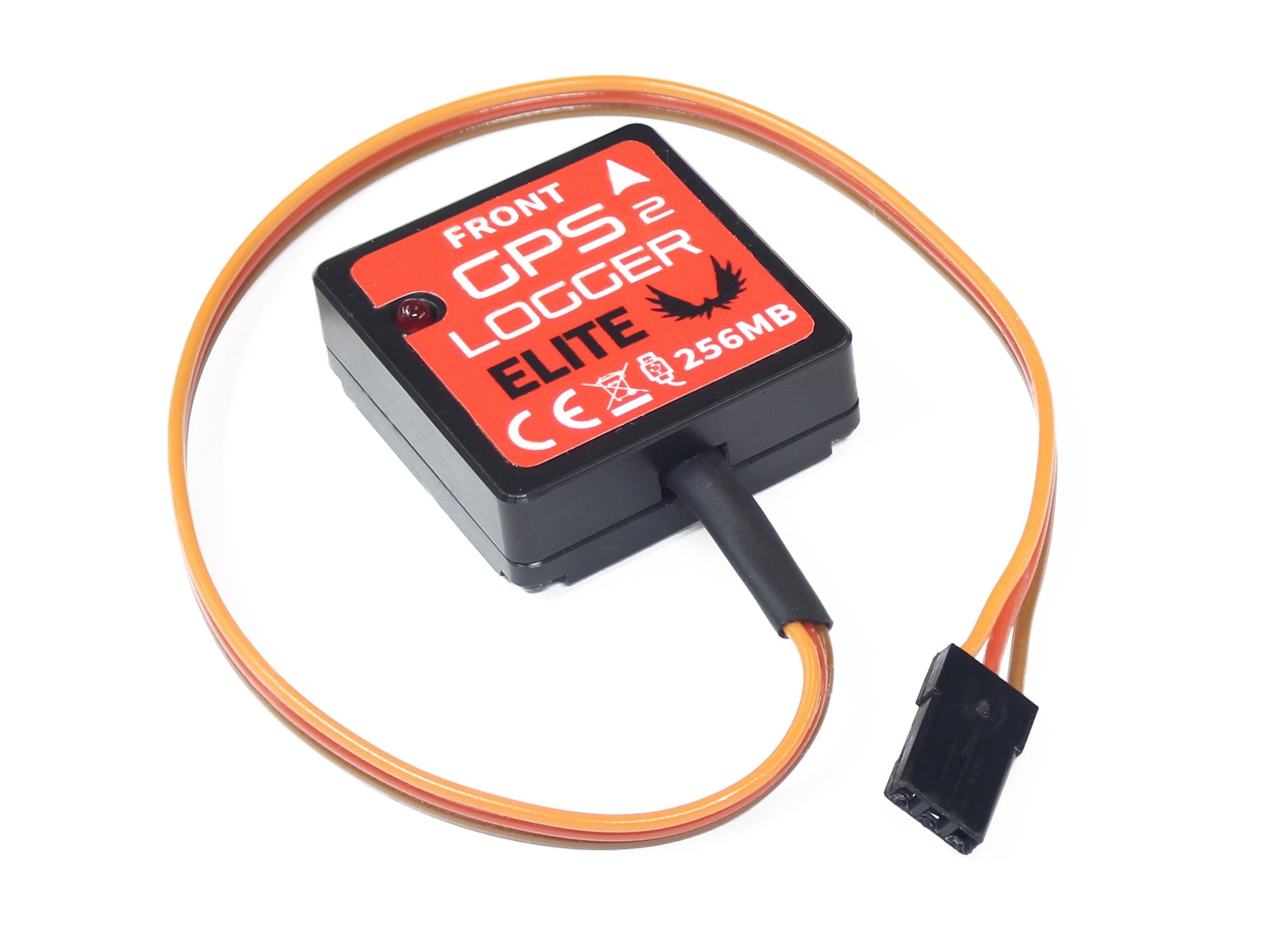

The GPS LOGGER is a telemetry device that offers fast and accurate real-time position detection, data logging and telemetry real-time downlink. It uses multiple satellite navigation systems to achieve maximum precision and resolution. Logging of all the data is possible due to its large integrated Flash memory.

The logged data can be downloaded and analyzed on a computer using the free MAV Manager software. Simply Plug & Play solution for your Jeti, Futaba, or Graupner RC System. Due to file sizes and data transfer speed we recommend using Elite USB Programming Interface Adapter (MAV) for data uploads.

Installation
Connect the GPS LOGGER to the receiver telemetry port. Place the device on top of the plane, so that the internal patch antenna is not shielded in any direction. Shielding materials, such as metal, carbon or anything conducting, can reduce the performance of position detection. Additionally, ensure that the 2.4GHz antennas are located at least 8" (200mm) or more from the GPS LOGGER. Try to avoid any mechanical stress on the sensor and avoid any close contact with components producing heat (such as engines or speed controllers). Use a soft double-sided adhesive tape, or Velcro as an alternative.

Specifications and Features
- Large industrial memory for data logging (256MB).
- The latest generation GPS chipset supports multiple satellite systems.
- 3-axis magnetometer/compass for external navigation purposes.
- Back up the supercapacitor for fast position fixing after powering it off.
- Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2.
- Automatic time zone detection.

More information (links):




Compatibility: Jeti EX, Multiplex M-LINK, Graupner HoTT, Futaba S.Bus/S.Bus2
Positioning Systems: GPS, GALILEO, GLONASS
Data Recording Time: Up to 66 Hours (5 samples/s)
Operational Voltage: 3.5V to 8.4V
Dimensions/Weight: 28mm x 30mm x 9mm/14g
Parameters: Latitude/Longitude, Distance, 2/3D Speed, Azimuth, Heading/Course, Altitude
Programmable: Using JetiBox, JetiBox Mini and JetiBox Profi

	Live Position with Map Overlay See the current model position directly on the map, easily zoom in or out. Track altitude, speed and distance, in real time, from the home screen of the transmitter. Easily locate the model in relationship to the local topography. Very important when flying in a restricted environment with strict boundaries.
	Navigation and Artificial Horizon Voice & Visual navigation directly on the screen. Azimuth with heading for return home in case of emergency, or loss of sight of the model. If you ever get lost while in the air, you can get back home by following the arrow on the screen and listening to the voice directions. Add Jeti Assist Receiver or EX5 Stabilization and get the artificial horizon for spatial orientation.
	Last Known Position Disaster strikes, lost your model? Our telemetry system can always help. Elite GPS will display live on the screen of the transmitter your models last known position. Data is preserved even in case of power interruption at the model. Fast refresh rates ensure that the location shown is accurate to the position of the unintended landing site.
